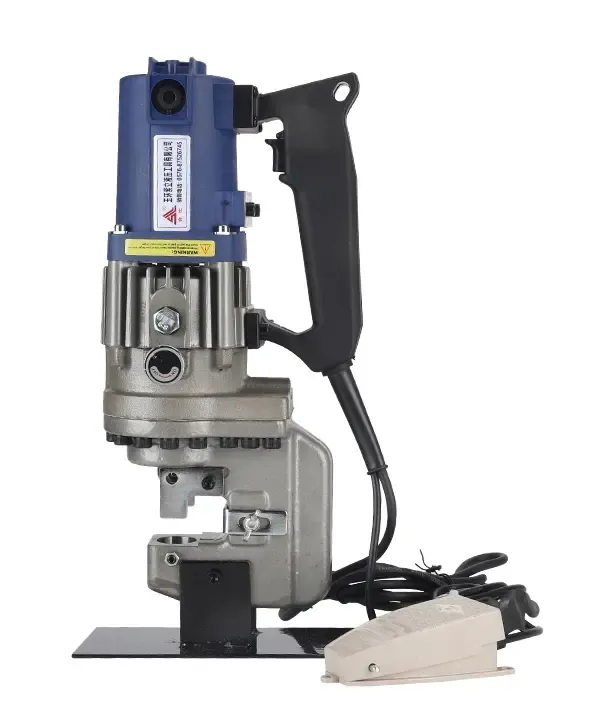

NMHP-22 Brushed Motor
THQ-108513
Hydraulic punch · Brushed motor
1500 W powerful motor for a wide range of uses
Brushed motor, strong power
Accurate positioning without drift
Portable plastic case
Brushed motor, strong power
Accurate positioning without drift
Portable plastic case
| Voltage | 220 V / 110 V |
|---|---|
| No-load power | 1500 W |
| Punching time | 3–6 s |
| Throat depth | 40 mm |
| Max diameter | 22.5 mm |
| Max thickness | 8 mm |
| Net / gross weight | 12 / 23 kg |
| Packing | Hard plastic case |
| Standard dies | Ø9 Ø11 Ø13 Ø17 Ø22.5 |
Prefer to talk to an engineer?
Send the drawing or the bolt schedule — we will size the tool and confirm lead time.
