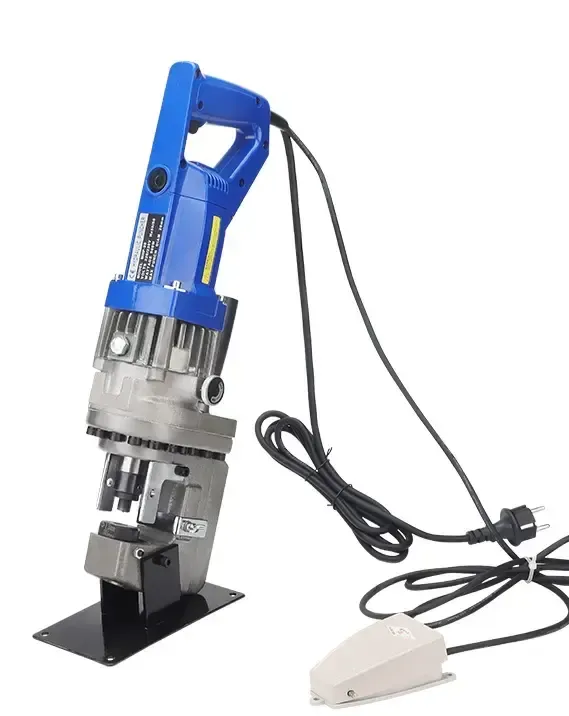

MHP-20 Angle Steel
THQ-990766
Hydraulic punch · Angle steel
1300 W powerful motor for a wide range of uses
Ergonomic design, comfortable to carry
Oil filler port for easy maintenance
Accurate positioning without drift
Ergonomic design, comfortable to carry
Oil filler port for easy maintenance
Accurate positioning without drift
| Output | 12 t |
|---|---|
| Voltage | 220 V |
| Power | 1300 W |
| Alu / copper plate | ≤ 8 mm |
| Iron / steel plate | ≤ 5 mm |
| Angle steel | 4–6.3 angle steel |
| Net / gross weight | 12 / 15 kg |
| Throat depth | 40 mm |
| Standard dies | Ø6.5 Ø9 Ø13 Ø17 Ø20.5 |
Prefer to talk to an engineer?
Send the drawing or the bolt schedule — we will size the tool and confirm lead time.
