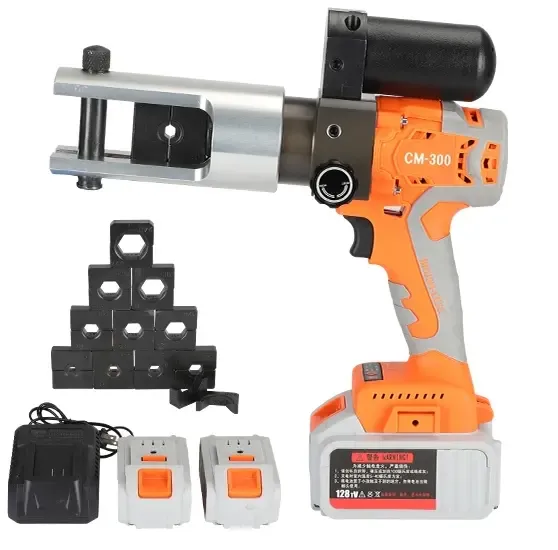

CM-300
THQ-704227
Compact
Compact
| Model | CM-300 |
|---|---|
| Output | 75 kN |
| Crimping Range | 16–300 mm² (Cu) / 240 mm² (Al) |
| Stroke | 17 mm |
| Battery | DC 18V / 4.0 Ah |
| Charge Time | ≈ 2 h |
| Die Range | 16 25 35 50 70 95 120 150 185 240 300 mm² |
| Weight | 3.6 / 4.0 kg |
| Certification | CE / ISO 9001 |
More in this range
Prefer to talk to an engineer?
Send the drawing or the bolt schedule — we will size the tool and confirm lead time.
